- Country
- United States of America (USA)
- Manufacturer / Brand
- Bendix Radio Division; Baltimore, MD
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 244415

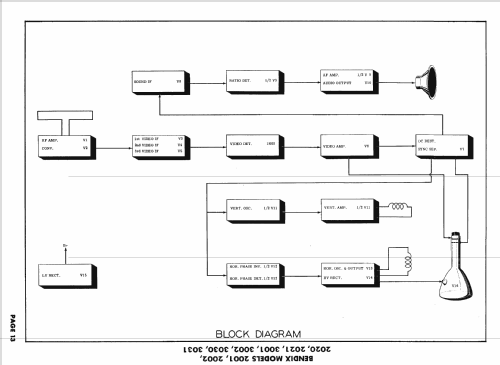

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AU6 6AU6 6T8 6AQ5 6SN7GT 6SN7GT 6BQ6GT 1B3GT 5V4G 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.8 inch = 9.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3030 - Bendix Radio Division;
- Shape
- Tablemodel, low profile (big size).
- Notes
-
TV Receiver with 10" Picture tube 10BP4 some models with 12" Picture tube 12LP4. Channels 2 thru 13.
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol.9/50 Date 2-50 84-4 Set 84 Folder 4)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
