• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34387

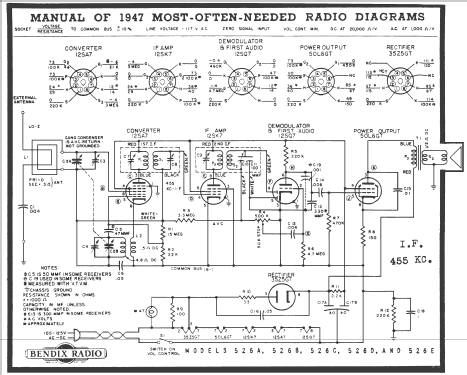

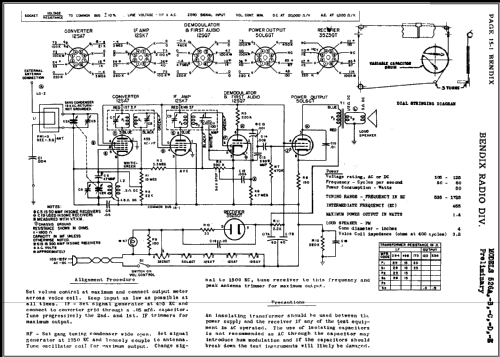

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.88 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 526B Ch= R-1 - Bendix Radio Division;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 11.3 x 7 x 7.25 inch / 287 x 178 x 184 mm

• Notes
• Cabinet: Ivory or mahogany plastic.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• Bendix Service Manual

• Literature/Schematics (1)
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (January 1946 page 14. September 1946 page 8.)
