- Country
- United States of America (USA)
- Manufacturer / Brand
- Bendix Radio Division; Baltimore, MD
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 203907
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Material
- Wooden case
- from Radiomuseum.org

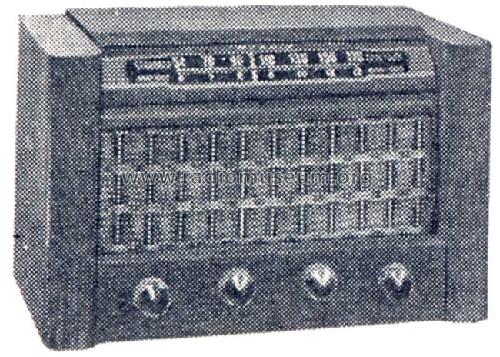

- Model: 616-A - Bendix Radio Division;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.75 x 9.25 x 9.125 inch / 375 x 235 x 232 mm
- Notes
- Tunes 528 to 1725 kc standard broadcast, plus 5.7 to 12.5 mc for short wave with band spread tuning. Built-in antenna.
- Mentioned in
- Radio Retailing (Radio & Television R.) (January 1946 page 14. June 1946 page 36/37.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
