• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34400

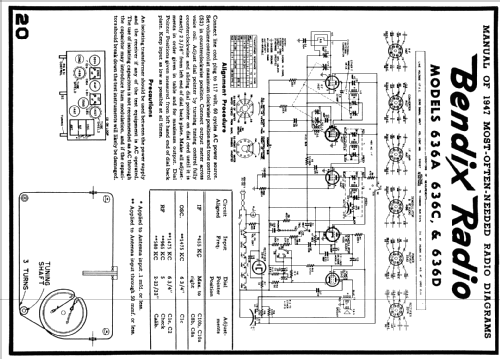

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 14A7 14Q7 14A7 14B6 35A5 35Y4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: 636C - Bendix Radio Division;

• Shape
• Tablemodel, with any shape - general.

• Notes
• The Bendix model 636C is an AC-DC Operated Superheterodyne with built in loop antenna and Phonograph Provisions.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Radio Retailing (Radio & Television R.) (January 1946 page 14.)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date: Mar 1947, Set 15, Folder 475-4)
