Ford 6BF Ch= FDR-18805-B
Bendix Radio Division; Baltimore, MD
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bendix Radio Division; Baltimore, MD
- Year
- 1956
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 100994
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 262 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Ford 6BF Ch= FDR-18805-B - Bendix Radio Division;
- Shape
- Chassis only or for «building in»
- Notes
-
For 1956 Ford Automobiles.
Speaker 6 x 9 inch.
- Circuit diagram reference
- Photofact Folder, Howard W. SAMS
- Literature/Schematics (1)

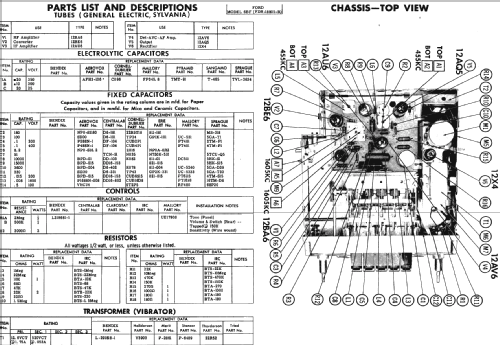

- Photofact Folder, Howard W. SAMS (Set 331 Folder 8 dated 9-56)
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 311 Folder 19-S Dated 1956)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
