75M8 Heritag

Bendix Radio Division; Baltimore, MD

Data
Forum
Pictures
Collections

  • Year
  • 1948/1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 34419

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 6 inch = 15.2 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 75M8 Heritag - Bendix Radio Division;
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 28 x 36 x 16.1 inch / 711 x 914 x 409 mm
  • Notes
  • The Bendix Radio models 75B5 (cabinet blond), 75M5 (mahagony), 75M8 (mahagony) and 75W5 (walnut) are AC operated combinations of phono-radio as AM-FM superheterodyne receiver with an incorporated loop antenna. In the same family are also the table models (without phono) 75P6 and 75P6U with AC-DC operation and oval speaker 4 x 6". We don't know further differences between the models in this list - except that according to SAMS 75M8 uses two loudspeakers 5 7/8" Jensen ST-110 and the models 75B5, 75M5 and 75W5 use a speaker with cone diameter of 7 3/4". The cabinets may be different as we see on pictures of Rider and SAMS but we have no proof to know which is which.
  • Net weight (2.2 lb = 1 kg)
  • 37.6 kg / 82 lb 13.1 oz (82.819 lb)
  • External source of data
  • Ernst Erb

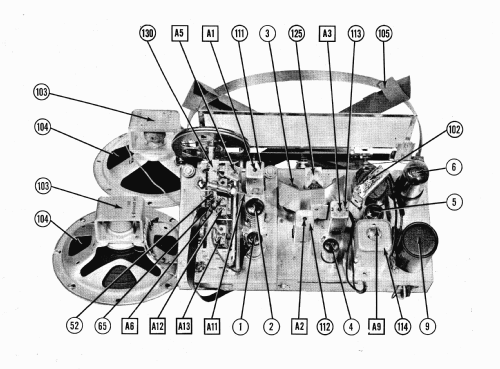

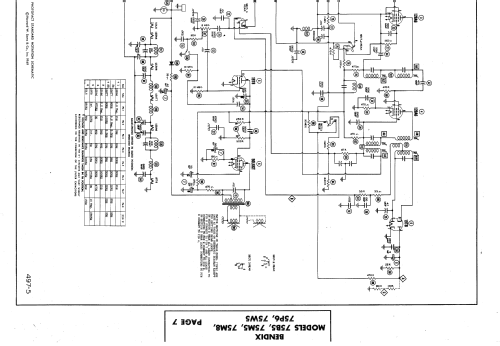

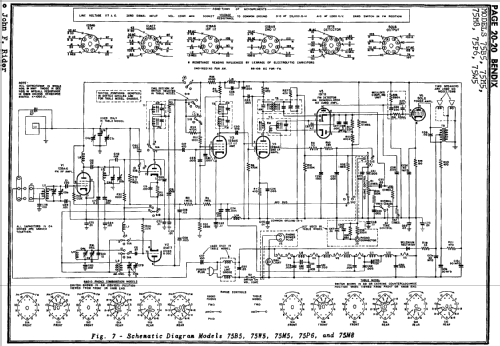

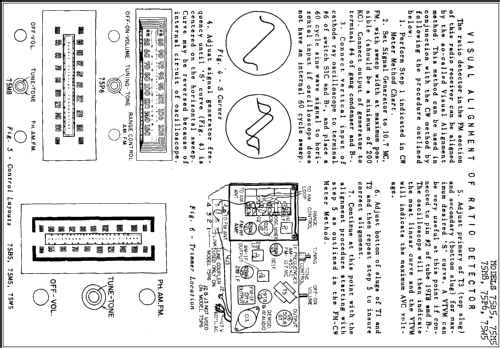

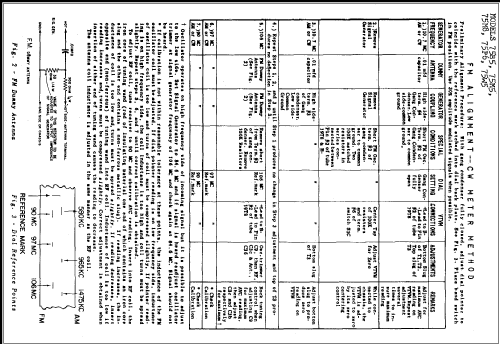

  • Circuit diagram reference
  • Rider's Perpetual, Volume 20 covering 1950
