• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 34424

• Picture

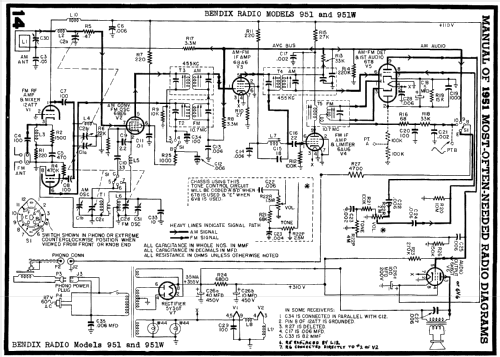

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 6BE6 6BA6 6AU6 6T8 or 6V8 6K6GT or 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 951 - Bendix Radio Division;

• Shape
• Console with any shape - in general

• Notes

• Bendix model 951 is an AC operated combination phono-radio, AM-FM superheterodyne receiver. The Bendix models 951 and 951W use the same chassis. They are AC operated combination AM-FM phono-radios with built in loop antenna.



• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 11, 1951

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 136, folder 6, dated 6-51)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 22 = covering 1951
