- Country
- United States of America (USA)
- Manufacturer / Brand
- Bendix Radio Division; Baltimore, MD
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 34428
Rider
SAMS
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

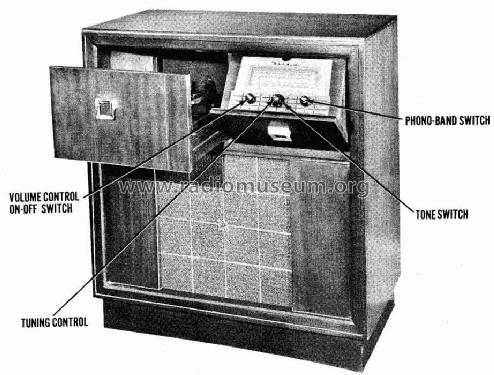

- Model: 95M3 - Bendix Radio Division;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 31.8 x 34 x 16.3 inch / 808 x 864 x 414 mm
- Notes
- The Bendix models 95B3, (blonde), 95M3 (mahagony) and 95M9 (mahagony) use the same chassis. They are AC operated combination AM-FM phono-radios with built in loop antenna.
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 4-49, 498-7, set 60, folder 7)
