C-172

Bendix Radio Division; Baltimore, MD

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Bendix Radio Division; Baltimore, MD

Year
1951/1952

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
130807

Schematics

C-172 ; Bendix Radio (ID = 1952331) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952333) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952334) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952330) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952335) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952336) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952337) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952339) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952340) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952341) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952342) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952343) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952345) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952347) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952348) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952349) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952350) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952351) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 1952352) Television — Bendix Radio C-172 (3)

C-172 ; Bendix Radio (ID = 840840) Television — Bendix Radio C-172 (2)

C-172 ; Bendix Radio (ID = 453849) Television — Bendix Radio C-172 (2)
Original-Prospect

C-172 ; Bendix Radio (ID = 1952328) Television — Bendix Radio C-172 (2)

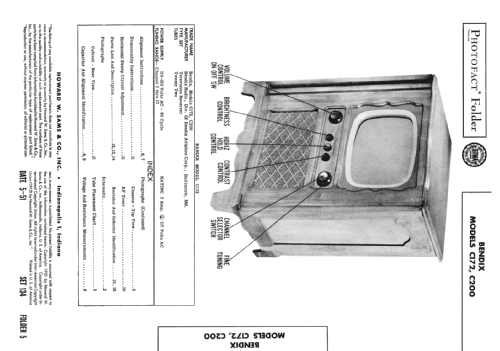

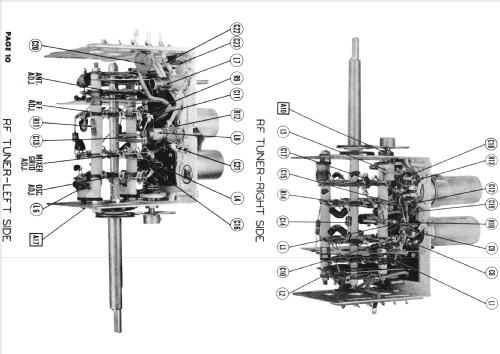

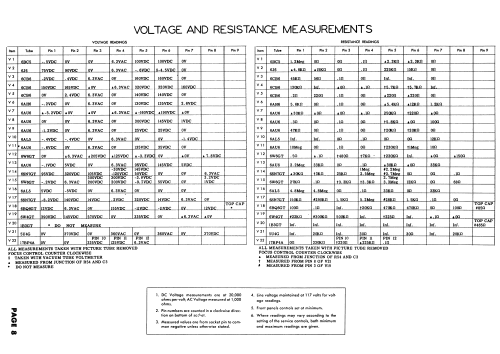

Sams Photofact Set 134 Folder 5 Date 5-51

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
22

Valves / Tubes
6BC5 6J6 6CB6 6CB6 6CB6 6AH6 6AU6 6AU6 6AU6 6AL5 6AU6 6W6GT 6AU6 6SN7GT 6W6GT 6AL5 6SN7GT 6BQ6GT 6W4GT 1B3GT 5U4G 17BP4A

Main principle
Superheterodyne (common); 2 AF stage(s)

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.75 inch = 29.8 cm

Material
Wooden case

from Radiomuseum.org
Model: C-172 - Bendix Radio Division;

Shape
Console, Lowboy (legs < 50 %).

Notes

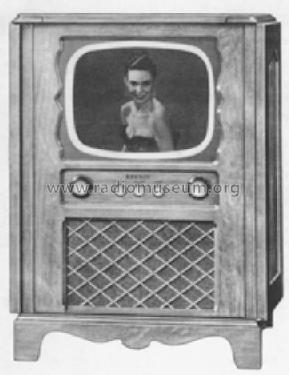

Bendix C-172; 17" rectangular CRT b/w TV with US standard VHF tuner, French provincial cabinet with full-length doors.

Source of data
-- Original prospect or advert

Mentioned in
Photofact Folder, Howard W. SAMS (Date 5-1951, Set 134, Folder 5)

Author
Model page created by a member from A. See "Data change" for further contributors.
