Edsel 94BE Ch= B9KF-18805-D
Bendix Radio Division; Baltimore, MD
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bendix Radio Division; Baltimore, MD
- Year
- 1959
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 152226
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- 2
- Main principle
- Superhet with RF-stage; ZF/IF 262.5 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Edsel 94BE Ch= B9KF-18805-D - Bendix Radio Division;
- Shape
- Chassis only or for «building in»
- Notes
- The Bendix Model Edsel 94BE is a Battery operated 4 Tube Custom Built Automobile AM Receiver with Transistorized Output for 1959 Edsel Automobiles.
- Literature/Schematics (1)

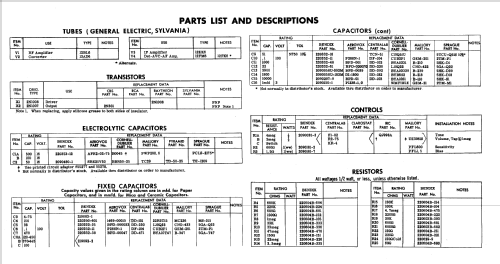

- Photofact Folder, Howard W. SAMS (Date 9-59, Set 456, Folder 10)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
