• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1958

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 175288

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 12AT7 12AT7 12AT7 12AU6 12AU6 12AU6 12AU6 12AL5

• Number of Transistors
• 1

• Semiconductors
• 2N419

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz; 1 AF stage(s)

• Tuned circuits
• 12 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Lincoln 88BH Ch= FFC-15491-B - Bendix Radio Division;

• Shape
• Chassis only or for «building in»

• Notes

• The Bendix 88BH is a Battery operated Custom Built Automobile FM Tuner
  for Lincoln Automobiles. External af amplifier required.
  Transistor inverter for +B.

• Literature/Schematics (1)

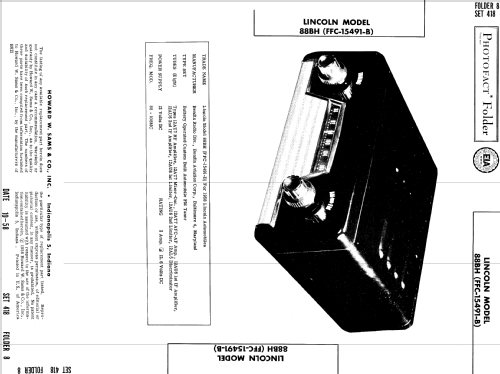

• Photofact Folder, Howard W. SAMS (Date 10-58, Set 418, Folder 8)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 394 Folder 17-S dated 4-58)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
