• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1960 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 139892

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12FX8 12EK6 12AE6A 12DY8

• Number of Transistors
• 3

• Semiconductors
• 2N1287 2N1227 2N1227

• Main principle
• Superheterodyne (common); ZF/IF 262,5 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Mopar 403 - Bendix Radio Division;

• Shape
• Chassis only or for «building in»

• Notes
• Sams photofact set 504 folder 15 date 10-60 features the Bendix models Mopar 402 and Mopar 403 as the same schematic. 402 is for 1960 Cryslers and 403 is for 1960 Imperials.

• Literature/Schematics (1)

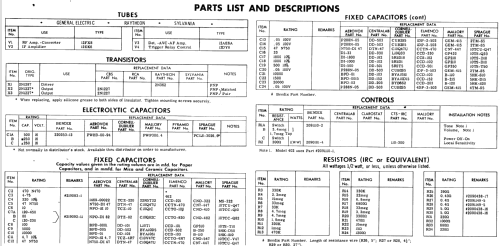

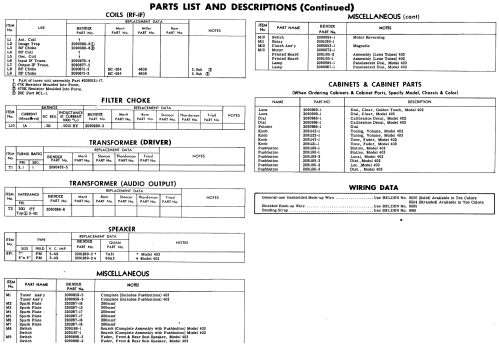

• Photofact Folder, Howard W. SAMS (Set 504 folder 15 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
