O526A (0526A) Ch= O-1

• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116992

• Picture
• Schematics

Previous Next

Previous Next

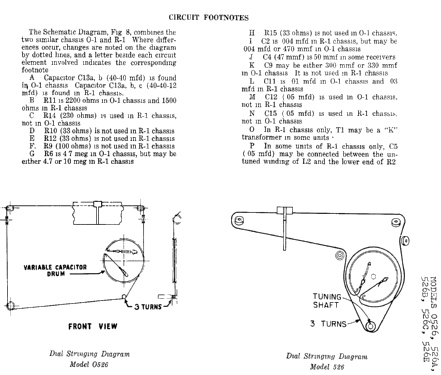

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 1.88 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: O526A Ch= O-1 - Bendix Radio Division;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 180 x 180 mm / 11 x 7.1 x 7.1 inch

• Notes
• Color: brown.

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Source of data
• Rider's Perpetual, Volume 20 = covering 1950

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 440 models, 359 with images and 216 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Bendix Radio Division; Baltimore, MD
