• Country
• United States of America (USA)

• Manufacturer / Brand
• Bendix Radio Division; Baltimore, MD

• Year
• 1970 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 252664

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 262,5 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Metal case

• from Radiomuseum.org

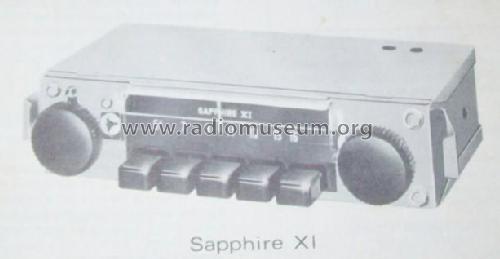

• Model: Sapphire XI 1970 OBV - 0BV - Bendix Radio Division;

• Shape
• Chassis only or for «building in»

• Notes

• Custom made for Volkswagen, 5 pushbuttons.

• Mentioned in

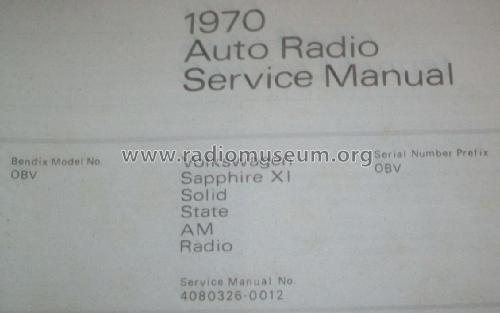

• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Jose Domingos Pereira Lopes. See "Data change" for further contributors.
