Handheld Aviation Transceiver KX 99, P/N 069-1026
BendixKing - BK (brand); Albuquerque, NM
- Country
- United States of America (USA)
- Manufacturer / Brand
- BendixKing - BK (brand); Albuquerque, NM
- Year
- 1986 ?
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 358584
- Main principle
- DSP, Digital Signal Processor
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Dry Batteries / 9.6 - 13.75 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Handheld Aviation Transceiver KX 99, P/N 069-1026 - BendixKing - BK brand;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 60 x 120 x 40 mm / 2.4 x 4.7 x 1.6 inch
- Notes
-

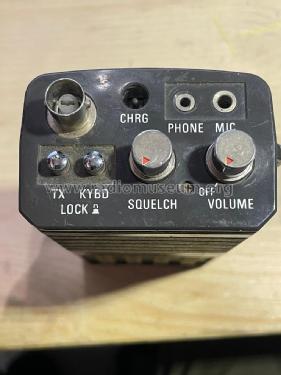

The Bendix/King KX 99 is a 760-channel, hand-held VHF aircraft communications transceiver with a 1.5 W transmitter output and an internal speaker and microphone. Jacks for external headphones and microphone. Originally provided with a 9.6 V, 720 mAh NiCad battery pack with an external power charging jack (CHRG). Alkaline batteries may also be used (AA: 8 x 1.5V).
Made in Singapore
- Net weight (2.2 lb = 1 kg)
- 1.75 lb (1 lb 12 oz) / 0.795 kg
- Literature/Schematics (1)
- -- Original-techn. papers. (FCC ID ASY7BLKX99 approved 7/30/1986)
- Literature/Schematics (2)
- - - Manufacturers Literature (Operator's Manual KX 99 Handheld Aviation Transceiver, 10/92, P/N 006-08428-0000 3K)
- Author
- Model page created by Jordi Millan. See "Data change" for further contributors.
