• Country
• Soviet Union

• Manufacturer / Brand
• Berdsk Radio Works

• Year
• 1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100612

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors

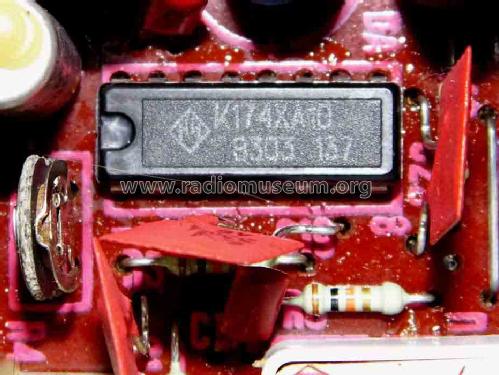

• КП303 К174ХА10

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Batteries / addl. power jack / AA: 4 ×1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

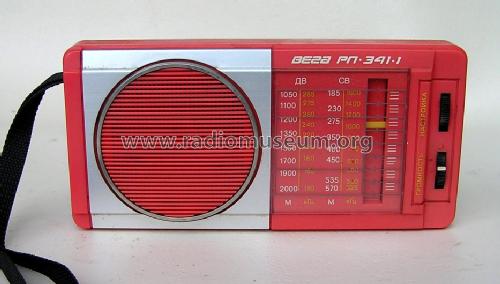

• Model: Vega {Вега} RP-341-1 {РП-341-1} - Berdsk Radio Works

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 185 x 90 x 35 mm / 7.3 x 3.5 x 1.4 inch

• Notes

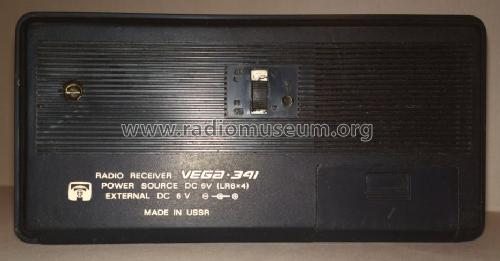

• Connection for earphone and DC supply 6 - 9 volts.

• Price in first year of sale
• 32.00 RUR

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
