• Country
• Spain

• Manufacturer / Brand
• Bettor, Industrias; Barcelona

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 338214

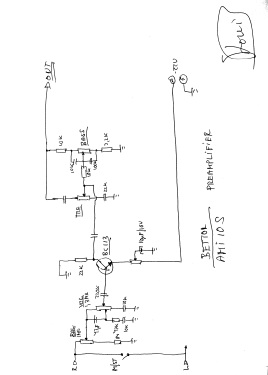

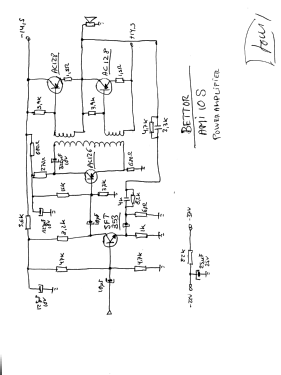

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BC109 BC148 BC109 AC187 AC188 BC109 BC148 BC109 AC187 AC188

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: ami-10 S [plato BSR] - Bettor, Industrias; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Notes

• Listados sólo los transistores de audio, sin incluir la radio.

  Plato tocadiscos BSR  mod. UA15SS3D (versión 230 V/50 Hz)

  Véase también

  • ami-10S (plato Dual) con placas de circuito impreso diferentes.

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
