- Country
- Spain
- Manufacturer / Brand
- Bettor, Industrias; Barcelona
- Year
- 1975 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 358284
Catálogo Bettor 1975/76
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (max.)
- Material
- Wooden case
- from Radiomuseum.org

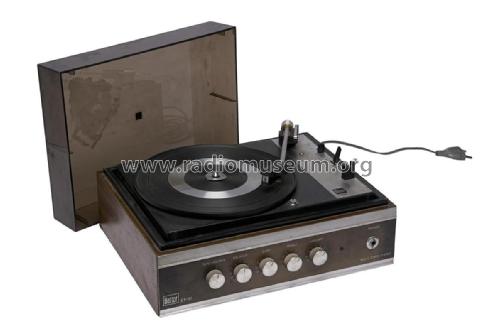

- Model: EF-51 - Bettor, Industrias; Barcelona
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 320 x 145 x 245 mm / 12.6 x 5.7 x 9.6 inch
- Notes
-
Industrias Bettor, S.A., Compacto EF-51
- Plato Dual 430 con cápsula cerámica Dual CDS-650
- Amplificador 2 x 5 W @ 8 Ω
- Viene con 2 cajas acústicas CB-202
- Entrada Tape
- Net weight (2.2 lb = 1 kg)
- 4.2 kg / 9 lb 4 oz (9.251 lb)
- Mentioned in
- Catálogo Bettor 1975/76
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
