- Country
- Spain
- Manufacturer / Brand
- Bettor, Industrias; Barcelona
- Year
- 1958–1960 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 318175
- Number of Tubes
- 1
- Valves / Tubes
- PCL86
- Conflicting model year with tube data.
- The model date contradicts tube dates. [ PCL86 (1960)]
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 4 W (undistorted)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

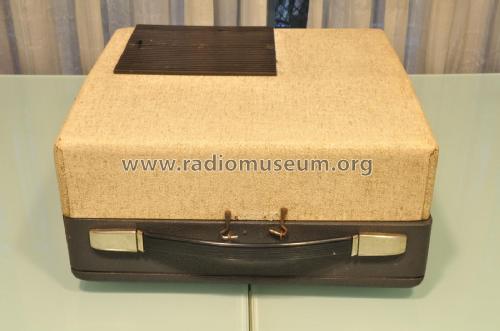

- Model: Mark 3 - Bettor, Industrias; Barcelona
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 330 x 170 x 315 mm / 13 x 6.7 x 12.4 inch
- Notes
-
- Controles de volumen y tono.
- Plato tocadiscos: Dual 300
- Velocidades: 16 / 33 / 45 / 78 RPM
- Cápsula cerámica
Rectificador con cuadro de diodos.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Mario Berta. See "Data change" for further contributors.
