• Country
• United States of America (USA)

• Manufacturer / Brand
• BIC America; Cleveland (OH)

• Year
• 1975 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 273187

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Venturi Formula 1 - BIC America; Cleveland OH

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 15 x 10.875 x 10 inch / 381 x 276 x 254 mm

• Notes

• Bic America 2-Way Speaker System Model Venturi Formula 1.
  Max. Power Handling 50 Watts
  35 - 18000 Hz. 6 Ohms
  Sound Dispersal 120x120
  1x Woofer 8" - BIC 080A
  1x Midrange/Treble - Modified Biconex Horn - BIC 010A
  Continuously variable "Brightness" Control
  Front Grille:
  Reticulated, zero-loss removeable foam
  choice of colors brown, black, beige, burnt orange, blue, red

  Shipping Weight 20 lbs



• Price in first year of sale
• 74.95 USD

• Mentioned in

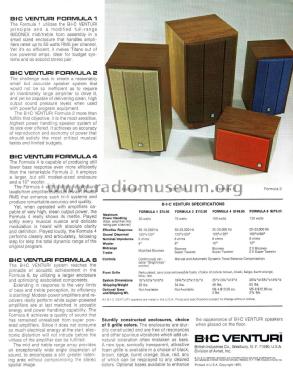

• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
