• Country
• Switzerland

• Manufacturer / Brand
• Biennophone; (Marke)

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77493

• • alternative name: Sport AG Biel || Velectra AG

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors

• Main principle
• TRF with diode detector

• Wave bands
• Long Wave and/or Very Low Frequency (VLF).

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

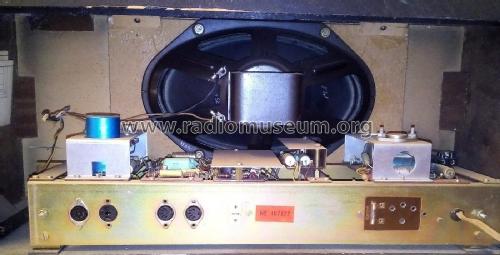

• Model: Weggis 60HS - Biennophone; Marke

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 540 x 250 x 190 mm / 21.3 x 9.8 x 7.5 inch

• Notes
• Nur HF-TR, einzelner Grammo- und TB-Anschluss

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
