• Country
• United States of America (USA)

• Manufacturer / Brand
• Bigg of California (BOC); L.A., CA

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 143816

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC83 ECC83 ECC83 ECC83

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Master P-3-D - Bigg of California BOC; L.A.,

• Shape
• Chassis only or for «building in»

• Notes

• AC operated stereo preamplifier, with several phono equalization settings.

• Literature/Schematics (1)

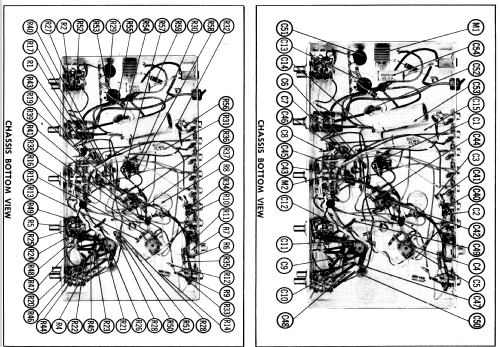

• Photofact Folder, Howard W. SAMS (Set 476 folder 5 date 3-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
