RF Directional Thruline Wattmeter 4410
Bird Technologies, Bird Electronic Corp., Bird Engineering Co.; Cleveland (OH)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bird Technologies, Bird Electronic Corp., Bird Engineering Co.; Cleveland (OH)
- Year
- 1985 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 322892

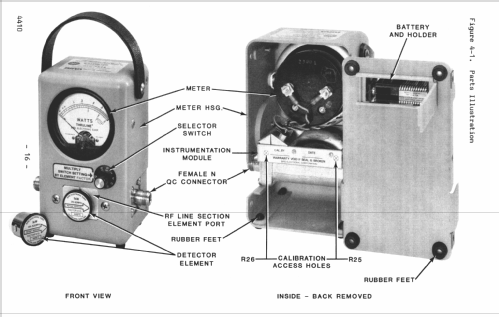

Picture from manual
RF Power Value vs VSWR
RF Power Value vs VSWR
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Dry Batteries / PP3: 1 x 9 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: RF Directional Thruline Wattmeter 4410 - Bird Technologies, Bird
- Dimensions (WHD)
- 4 x 6.875 x 3.375 inch / 102 x 175 x 86 mm
- Notes
-
Bird Electronics Corp. RF Directional Thruline Wattmeter 4410
The Bird 4410 Wattmeter is an insertion type RF wattmeter that measures RF power and load match in 50 Ω coaxial transmission lines. It can be used with CW unmodulated or FM signals only.
Power and frequency range:
- 0-10,000 W --- 0.2 - 30 MHz
- 0-1,000 W ---- 30 - 1000 MHz
- 0-100 W ------ 25 - 1000 MHz
Power and frequency range is determined by 4410 type Plug-In elements used, not interchangeable with other Bird elements.
Bird 4410 is supplied with two coaxial connectors Bird Quick-Change "QC" female N type.
- Net weight (2.2 lb = 1 kg)
- 3 lb 0 oz (3 lb) / 1.362 kg
