Multimeter 2810

B&K (Precision), Dynascan Corp., Cobra Electronics; Chicago, IL and Yorba Linda, CA

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 350467
    • alternative name: B&K Manufacturing Company

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Batteries / addl. power jack / C: 4 x 1.5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Multimeter 2810 - B&K Precision, Dynascan Corp.,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 113 x 164 x 51 mm / 4.4 x 6.5 x 2 inch
  • Notes

  • 10 MΩ Input Impedance, 1999 Full Scale LED Display (3 1/2 digits)
    DC Volt Ranges 0.1, 1, 10, 100, 1000 Volt
    AC Volt Ranges 0.1, 1, 10, 100, 1000 Volt (50-400 Hz RMS)
    DC Current Ranges 1, 10, 100, 1000 mA
    AC Current Ranges 1, 10, 100, 1000 mA (50-400 Hz RMS)
    Resistance 0.1, 1, 10, 100, 1000 kΩ, 10MΩ. (HIGH-LOW except in 10MΩ)
                       10Ω range (20Ω full scale) as separate function.

    For AC Operation use model BC-28 Adapter/charger. Ni-Cd Batteries must be installed, do not use on AC with Non-Rechargeable Batteries.

    See also B&K Dynascan 2800

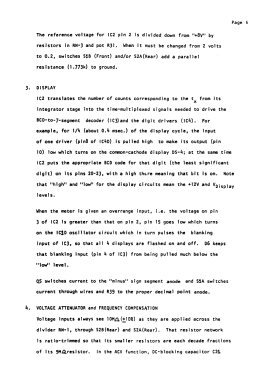

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
