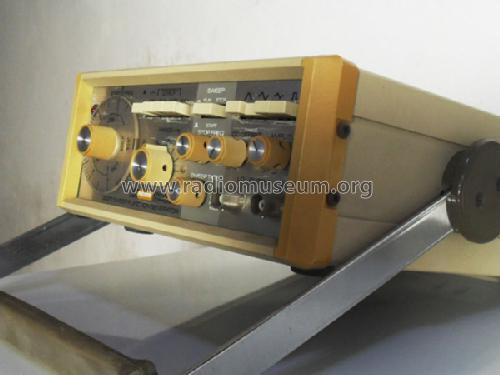

• Model: Sweep/Function Generator 3025 - B&K Precision, Dynascan Corp.,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 89 x 280 mm / 8.3 x 3.5 x 11 inch

• Notes
• Waveforms: Sine, Triangle, square and haversine *).
  Frequency Range: 0,005 Hz to 5 MHz.
  6 selector ranges: x 1, x 10, x 100, x 1 k, x 100 k, x 1 M.
  Frequency Accurancy: +/-5% of full scale in linear mode.
  Modes of Operation: Continous run, sweep, triggered and external VCF.
  Hi Output: 10 Vpp into 50 ohms.
  Lo Output: 1 Vpp into 50 ohms.
  sine distortion: < 0.5% 1 Hz to 100 kHz Manual or external gate triggered + 1.4 V Log and Linear view rotate scale.

  *) Single shot Haversine curve: inverted cosinus, positive offset by half the amplitude. Starts from zero, rises positive, descends to zero.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)
