• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 513

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1824 RENS1834 RENS1854 RENS1823d Urdox

• Main principle
• Superheterodyne (common); ZF/IF 475 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Direct Current supply (DC) / 220/230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 4LGP [220 V] - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 330 x 270 mm / 16.5 x 13 x 10.6 inch

• Source of data
• Radiokatalog Band 1, Ernst Erb

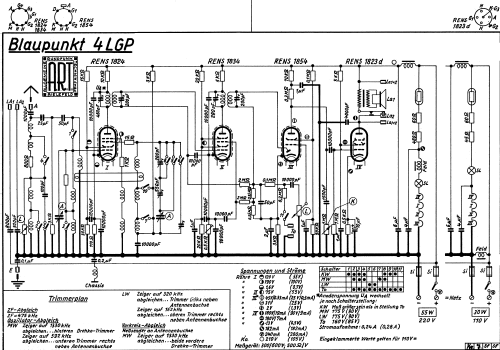

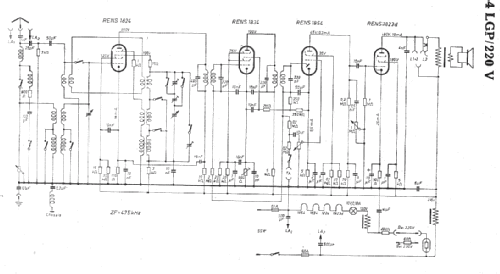

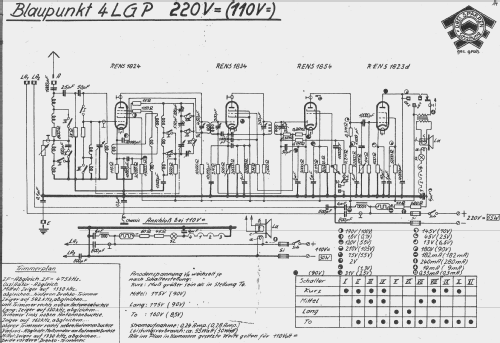

• Circuit diagram reference
• Lange + Schenk

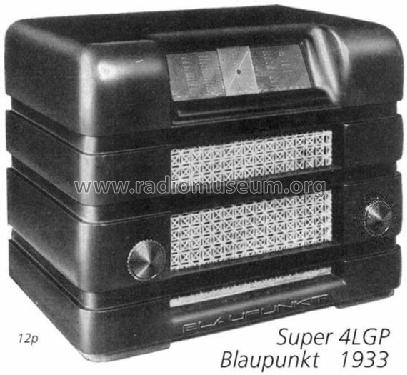

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
