6BW69

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1939–1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 629

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

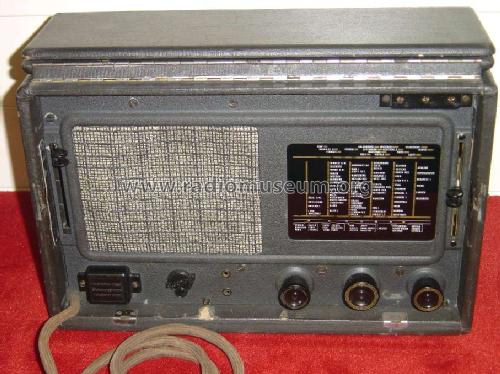

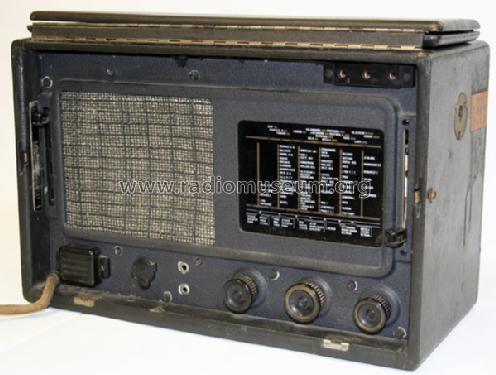

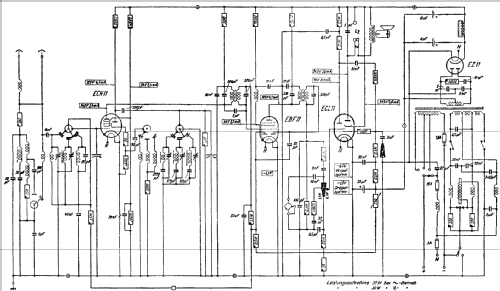

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

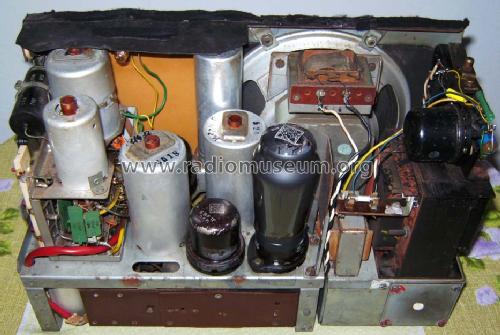

• Valves / Tubes
• ECH11 EBF11 ECL11 EZ11

• Number of Transistors

• Semiconductors
• SM12/2z or. SM12/3z

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

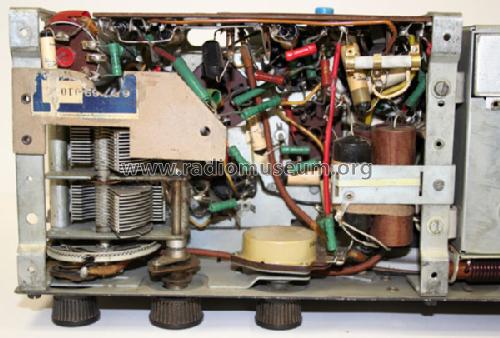

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

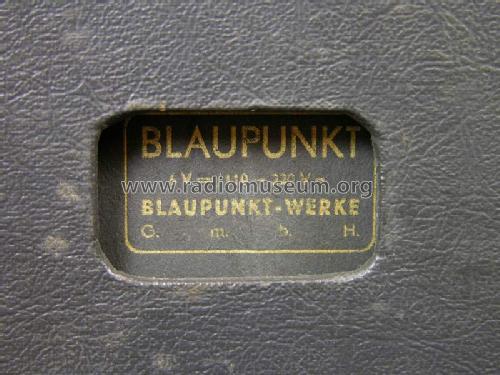

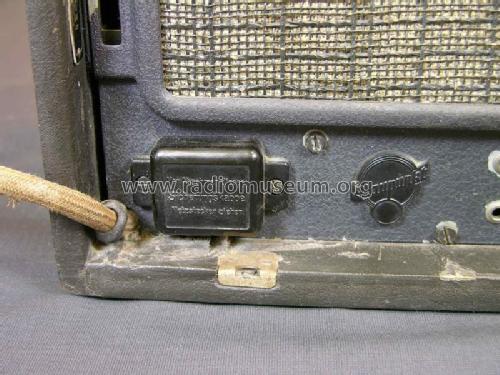

• Power type and voltage
• Line / Batteries (any type) / AC 110; 150; 220 / DC 6; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 6BW69 - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 233 x 180 mm / 14.2 x 9.2 x 7.1 inch

• Notes

• Truppenbetreuungsempfänger.

  Zerhacker:
  Für 6 V: SM12/2z
  Für 12 V: SM12/3z

• Net weight (2.2 lb = 1 kg)
• 10.7 kg / 23 lb 9.1 oz (23.568 lb)

• Price in first year of sale
• 298.00 RM

• Source of data
• Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb

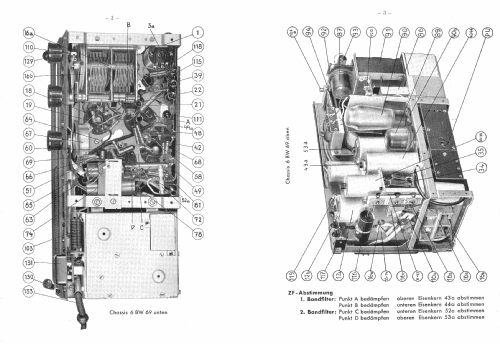

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Historische Radios (1-5) = zur Verknüpfung mit Modellseiten

• Literature/Schematics (1)
• -- Schematic (OTO-Schaltungen)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
