- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1950/1951
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 218870
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Innenleben

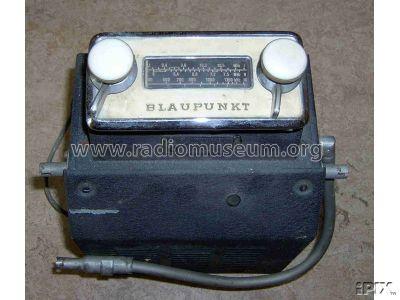

Bild aus ebay.de, zeigt 7A650T
Bild aus ebay.de
- Number of Tubes
- 5
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 473 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 3 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 7A650 T - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 135 x 205 x 305 mm / 5.3 x 8.1 x 12 inch
- Notes
- Blaupunkt 7A650 T;
Siehe auch Modell 7A650 P mit 2× EL42 in Parallelschaltung.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
