- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 622
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

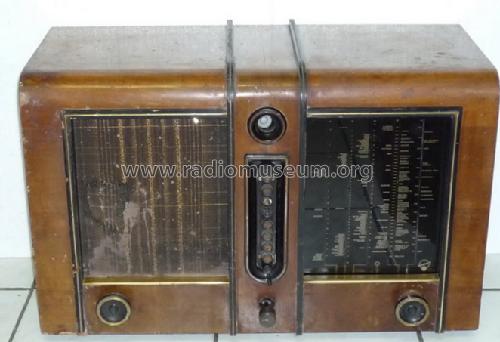

Nicht original: Skalendiffusor

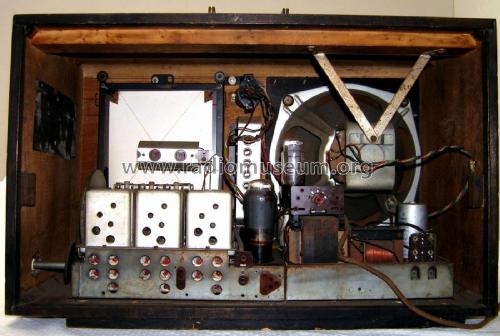

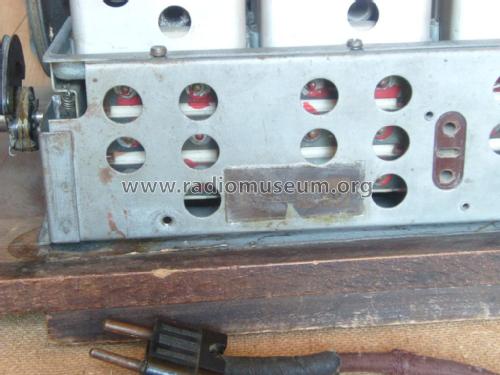

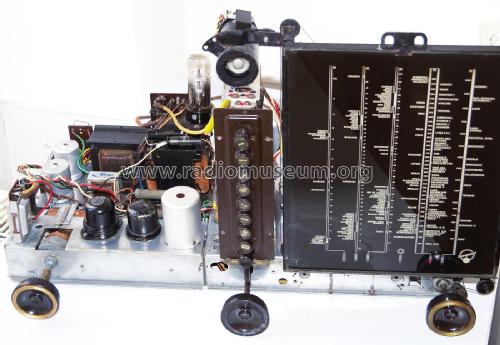

Bandfilter geöffnet
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8W79 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 695 x 439 x 310 mm / 27.4 x 17.3 x 12.2 inch
- Notes
-
Variable Bandbreite, Stationsdrucktasten. Folgemodell des 7 W 79 D.
Mit Anschlussmöglichkeit der Fernbedienung FB 89 (vieradriges Verbindungskabel).
In verschiedenen Katalogen wird zwar auf die FB 39 hingewiesen, doch diese ist für die 11W79-Super mit 19-adrigem Verbindungskabel (siehe pdf als Anhang).Blaupunkt Fernbedienungsteil FB 89 Preis 160 RM
- Price in first year of sale
- 415.00 RM
- Source of data
- Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Literature/Schematics (1)
- Handbuch der Funktechnik und ihrer Grenzgebiete Bände 1 bis 12 (Band 8, S. 55 ff)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
| FB 39 und FB 89 Beschreibung | 200 KB |
- Documents regarding this model
- Other Models
-
Here you find 3589 models, 3277 with images and 2329 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Blaupunkt Ideal,: 8W79
Threads: 2 | Posts: 5
Olá Radiofriends
Estou restaurando a eletrônica de um blaupunk modelo 8W79. Encontrei alguns capacitores com vazamento, aqueles com valores no Farad sem problema. Encontrei outros com valores que para mim eram muito estranhos, em "cm", ver foto em anexo.
Quem pode me dizer a equivalência de "cm" para Farad.
Esses capacitores com os dígitos "cm" eu poderia medi-los com um medidor de capacitância, mas como eles têm vazamentos, (danificados), os valores que o medidor de capacitância marca não são confiáveis, portanto não sei o valor para o substituição correta.
Muito obrigado
Júlio Branco
Júlio Branco, 02.Jul.21
was bedeutet bei Bemerkung FB39?
Gruß
MiJo
Michael John, 25.May.05
