• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1973/1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29138

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC632 2SC634 2SC634 2SB474 2SB474 2SC632 2SC634 2SC634 2SB474 2SB474

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

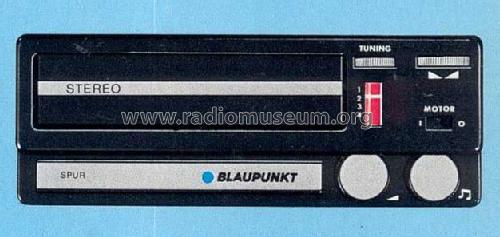

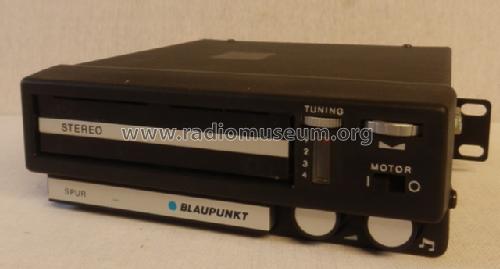

• Model: ACR825 7.634.803 - Blaupunkt Ideal, Berlin,

• Dimensions (WHD)
• 160 x 55 x 185 mm / 6.3 x 2.2 x 7.3 inch

• Notes
• 8-track stereophonic cartridge player, for under dashboard mounting.Set was made in Japan!

• External source of data
• Erb

• Source of data
• Katalog RFP 1973
