• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1975 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 80611

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• BC413 BC238 BC238 BC338 S153T BC308 BC238 BC238 1N4148 ZPD9,1

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Powered by external power supply or a main unit. / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

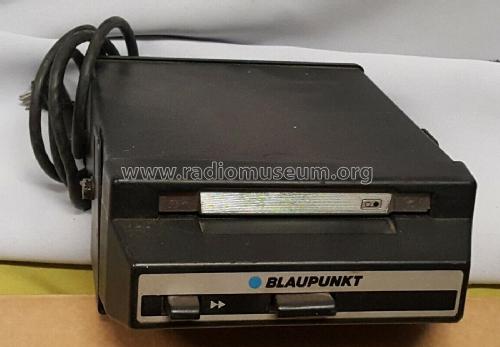

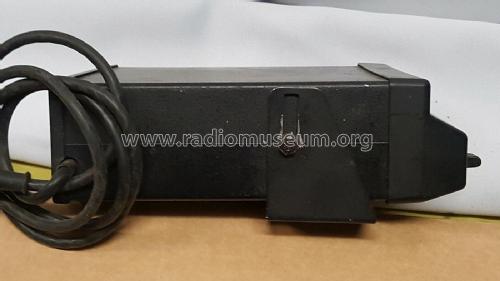

• Model: ACR900 7.633.900 [ab Nr. 1100001] - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 138 x 55 x 155 mm / 5.4 x 2.2 x 6.1 inch

• Notes

• Kassetten-Spieler nur in Verbindung mit einem Autoradio 12 V, Minus an Masse.

• Mentioned in
• -- Original-techn. papers. (KDB 375.04.005.20)

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
