• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1985–1988

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 202363

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

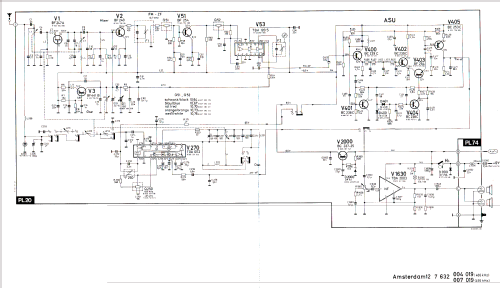

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BC238 BC239 BC337 TDA1072 TBA120 TDA2003

• Main principle
• Superheterodyne (common); ZF/IF ?/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 9 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

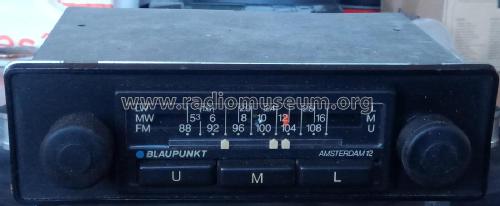

• Model: Amsterdam 12 7.632.007.019 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 175 x 45 x 150 mm / 6.9 x 1.8 x 5.9 inch

• Notes

• 2 Lautsprecher anschliessbar
  Anschluß für automatische Antenne
  3 manuell verschiebbare Stationszeiger
  12 Volt Plus / Minus Masse

  Letztes "klassisches" Autoradio im Blaupunkt Angebot (Drehregler rechts und links für Lautstärke und Sendereinstellung, Drucktasten für Wellenbereichswahl)

  Fabriqué en France

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Mentioned in
• - - Manufacturers Literature (Blaupunkt Autoradio Programm)

• Author
• Model page created by Jacky Parmentier. See "Data change" for further contributors.
