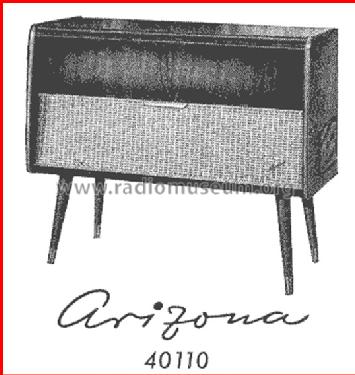

Arizona 40110 hell
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23503
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

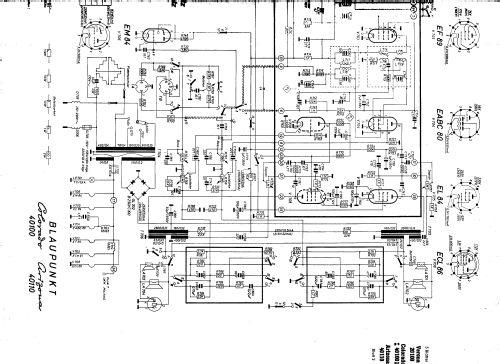

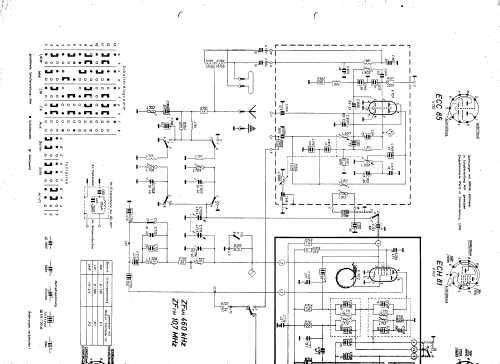

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Arizona 40110 [hell] - Blaupunkt Ideal, Berlin,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 912 x 782 x 385 mm / 35.9 x 30.8 x 15.2 inch
- Notes

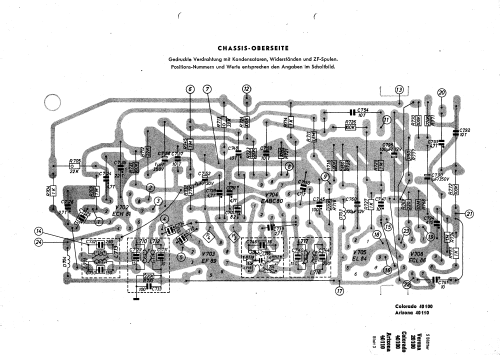

- Chassis wie Colorada 40100.
- Net weight (2.2 lb = 1 kg)
- 32.5 kg / 71 lb 9.4 oz (71.586 lb)
- Price in first year of sale
- 625.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1960/61
- Literature/Schematics (1)
- -- Original-techn. papers.
