A51K

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1951/1952

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 812

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

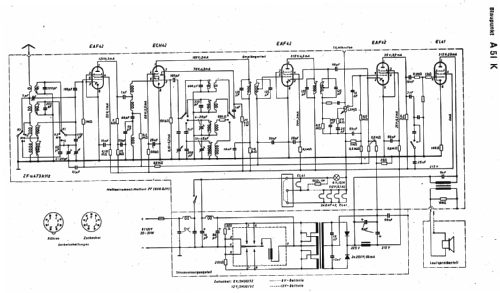

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EAF42 ECH42 EAF42 EAF42 EL41

• Number of Transistors

• Semiconductors
• SM30/7z or. SM30/9z E260C60 E260C60

• Main principle
• Superhet with RF-stage; ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: A51K - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 205 x 135 x 305 mm / 8.1 x 5.3 x 12 inch

• Notes
• Separater permanent-dynamischer Lautsprecher (Ø 130 mm) im Lieferumfang. Bei 6-Volt-Betrieb: Zerhacker SM30/7z, bei 12-Volt-Betrieb: Zerhacker SM30/9z.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 444.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 2
