• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1936/1937

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 552

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

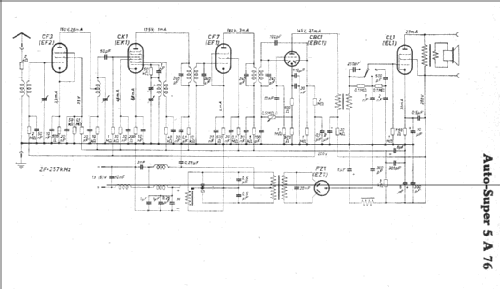

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF2 EK1 EF1 EBC1 EL1 EZ1

• Main principle
• Superhet with RF-stage; ZF/IF 257 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: 5A76 [6 V] - Blaupunkt Ideal, Berlin,

• Dimensions (WHD)
• 180 x 280 x 185 mm / 7.1 x 11 x 7.3 inch

• Notes
• separate Kreis-Skala.

• Price in first year of sale
• 336.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk

• Other Models

• Here you find 3587 models, 3275 with images and 2328 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Blaupunkt (Ideal), Berlin, später Hildesheim
