• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1955–1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20047

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

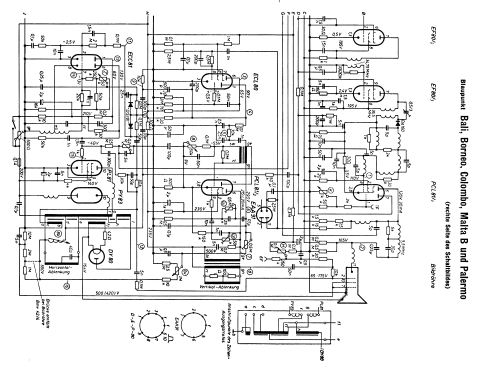

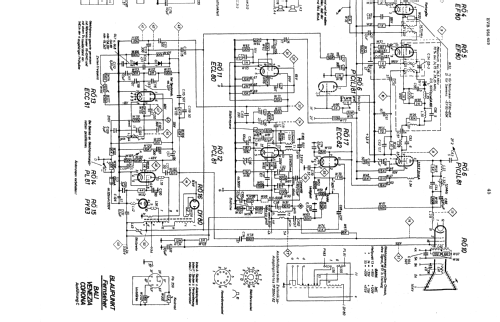

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 PCL81 ECL80 PCL81 ECC81 EF80 PABC80 PL82 ECC82 PL81 PY83 DY80 MW43-64 or Bmv42/4

• Number of Transistors

• Semiconductors
• OA160 OA161 OA161 E220C250 E250C85

• Main principle
• Superhet with RF-stage; ZF/IF 38900/33400 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Bali 7222 Ausf. C - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 470 x 570 mm / 22 x 18.5 x 22.4 inch

• Notes

• 12 Kanäle im VHF-Bereich Band I und III.
  Zubehör: Blaupunkt Fernbedienung FG250 für Lautstärke und Kontrast

  Preis 1956/57: DM 818,-

  Blaupunkt Bali 7222 wurde laut Kundendienstschrift nur in Ausführung C produziert.

• Net weight (2.2 lb = 1 kg)
• 29 kg / 63 lb 14 oz (63.877 lb)

• Price in first year of sale
• 798.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56

• Mentioned in
• -- Original prospect or advert (Blaupunkt Prospekt Fernseher 1956/57)

• Literature/Schematics (1)
• HdB d.Rdf-& Ferns-GrH 1956/57

• Literature/Schematics (2)
• Katalog Thiele,Helmstedt 1955/56 (und Handbuch RFP 1956/57)

• Literature/Schematics (3)
• -- Original-techn. papers.
