Bamberg CR Stereo 7.631.932 ab 1250001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1971/1972
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 28807
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

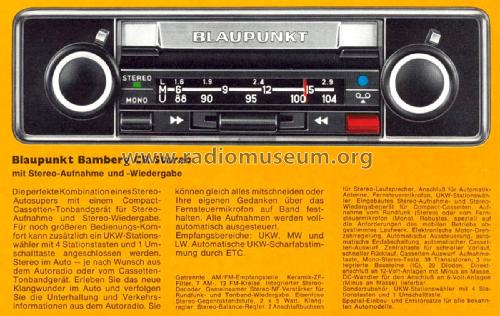

Q: Blaupunkt, Produkt-Katalog '72

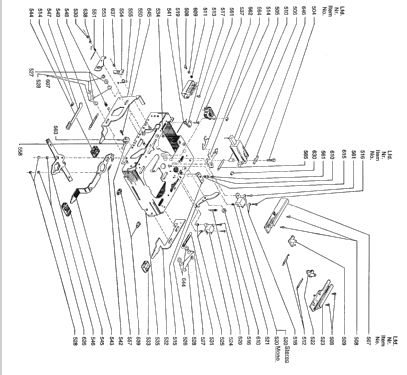

NS2 plug opened
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 39
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Bamberg CR Stereo 7.631.932 ab 1250001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Notes
- IC: 3; Dioden: 31
- Price in first year of sale
- 850.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973
- Literature/Schematics (1)
- -- Original-techn. papers.
