Barcelona 2342

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20557

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

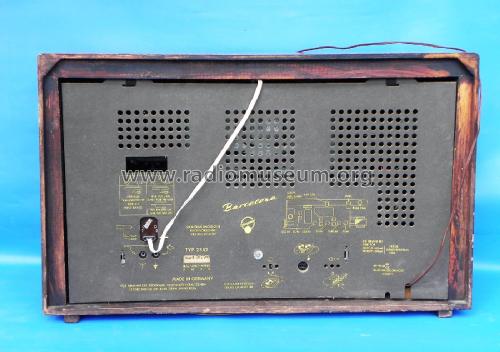

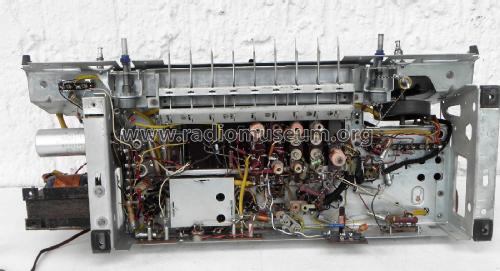

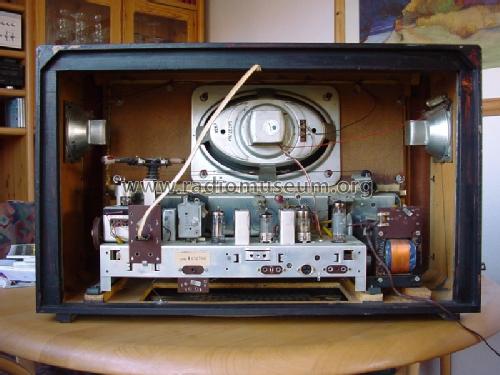

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 EC92 ECH81 EF89 EM80 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 155; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Barcelona 2342 - Blaupunkt Ideal, Berlin,

• Shape

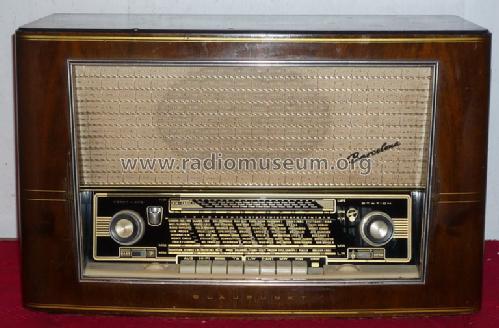

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 397 x 280 mm / 25.2 x 15.6 x 11 inch

• Notes

• KW-Lupe; drehbare Ferritantenne; Coloramic-Signierskala.

  Die Handbücher des Rundfunk- und Fernseh-Grosshandels (VDRG) und RFP 1956/57 nennen irrtümlich eine Höhe von 460 mm, tatsächlich gefertigte Geräte liegen jedoch bei 397 mm.

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Price in first year of sale
• 389.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Handbuch RFP 1956/57 (Thiele)
