• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1972–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 900

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

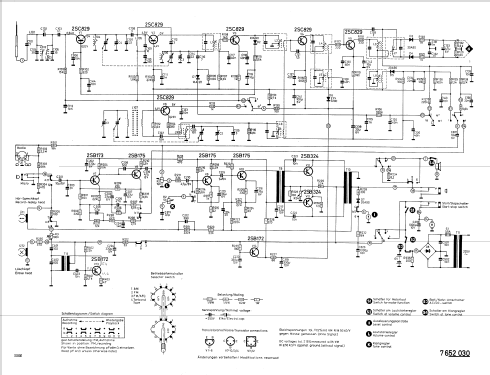

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• 2SC829 2SC829 2SC829 2SC829 2SC829 2SC829 2SB173 2SB175 2SB175 2SB175 2SB324 2SB324 2SB172 2SB172 20A90 Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Bari CR 7.652.030 - Blaupunkt Ideal, Berlin,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 286 x 233 x 63 mm / 11.3 x 9.2 x 2.5 inch

• Notes
• Instrument für Aussteuerungs- und Batteriespannungskontrolle.

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Katalog RFP 1973

• Literature/Schematics (1)
• Radio es Televizio Vevö keszülekek 1972-75

• Literature/Schematics (2)

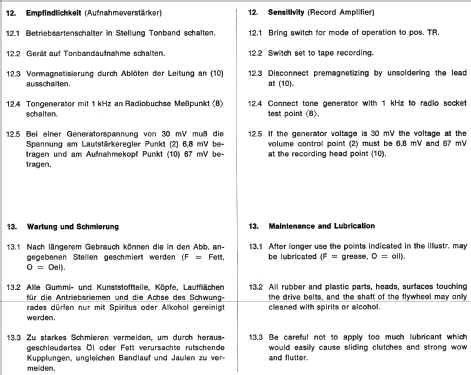

• -- Original-techn. papers. (Blaupunkt Service-Unterlagen 04.72)
