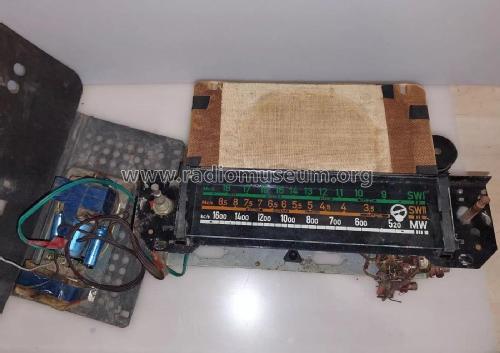

Bari III (3) 2267

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 356276
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; Export model
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 1.5 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Bari III 2267 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel with Push Buttons.
  • Notes

  • SW1 = 8.8 - 18.2 MHz
    SW2 = 3.2 - 8.5 MHz
    MW = 520 - 1600 kHz

  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
