Bari III de Luxe (3) 20622

Blaupunkt (Ideal), Berlin, später Hildesheim

Data
Forum
Pictures
Collections

  • Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 332101
    • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
    • Brand: Rotstern

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; Export model
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 1.5 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: Bari III de Luxe 20622 - Blaupunkt Ideal, Berlin,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 315 x 210 x 190 mm / 12.4 x 8.3 x 7.5 inch
  • Notes

  • Bari III de luxe Type 20622 is an export model.

    Wavebands:
    MW = 520 - 1620 kHz
    SW2 = 3.2 - 8.7 MHz
    SW1 = 8.7 - 18 MHz

    Elliptical speaker 6.14" x 3.79".

  • Net weight (2.2 lb = 1 kg)
  • 3.8 kg / 8 lb 5.9 oz (8.37 lb)
  • Mentioned in

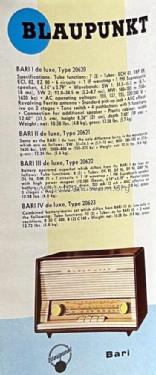

  • -- Original prospect or advert (Blaupunkt Radioprospekt 03/1960)
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
