• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1973

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 103618

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

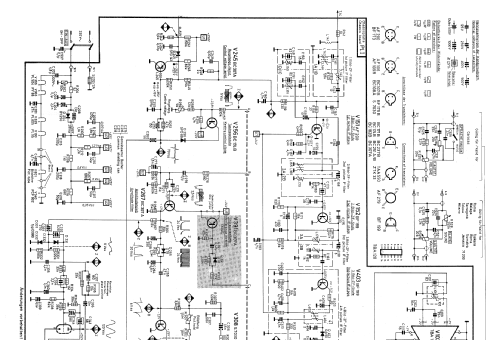

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• PCF802 PL504 PY88 PL805 PL95 A44-120W/2

• Number of Transistors
• 17

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Bermuda 7.673.240 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 530 x 360 x 300 mm / 20.9 x 14.2 x 11.8 inch

• Notes
• Empfangsbereiche: VHF und UHF.

• Net weight (2.2 lb = 1 kg)
• 12.8 kg / 28 lb 3.1 oz (28.194 lb)

• Source of data
• - - Data from my own collection
