• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1973

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 85556

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Material
• Metal case

• from Radiomuseum.org

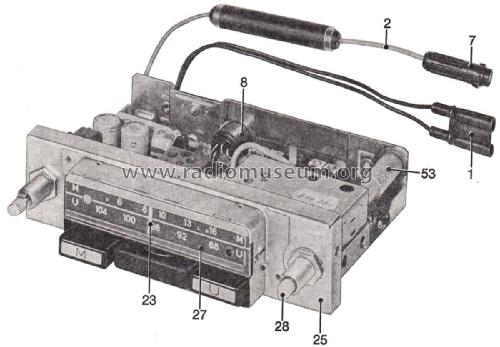

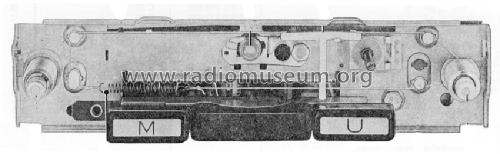

• Model: Bonn 7.633.326 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 153 x 38 x 90 mm / 6 x 1.5 x 3.5 inch

• Notes
• Transistoren: 3× BF255, 2× BF254, 2× BC238, BC328, BD505/6. TB-Buchse.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
