• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1958/1959

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 165137

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EF89 EBC91 EL84

• Number of Transistors

• Semiconductors
• SM702/1z or. SM702/2z B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

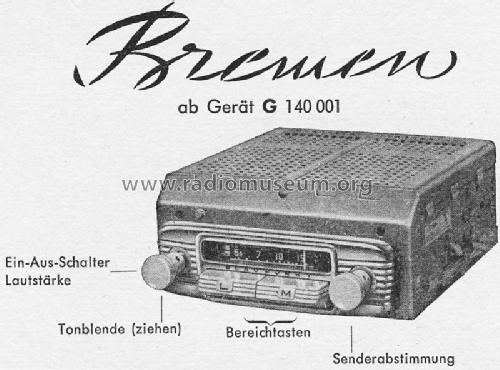

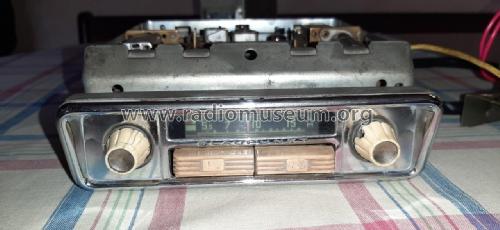

• Model: Bremen ab G 140001 - Blaupunkt Ideal, Berlin,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 183 x 76 x 168 mm / 7.2 x 3 x 6.6 inch

• Notes

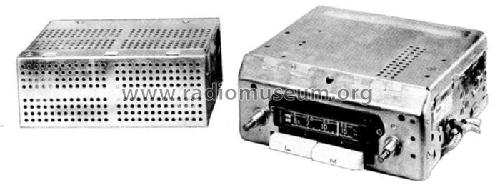

• Stromversorger 187 x 117 x 73mm ; Selenium Rectifier; Vibrator for +B
  Importer USA:
  Robert Bosch Corp., 40-25 Crescent Str., Long Island City 1, N. Y.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Source of data

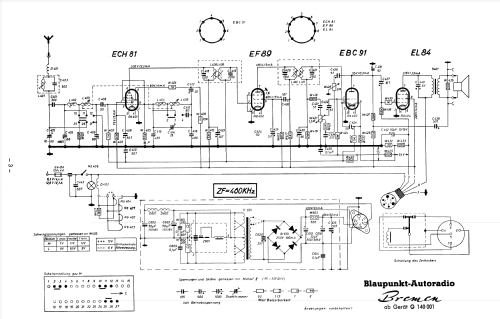

• -- Schematic

• Literature/Schematics (1)

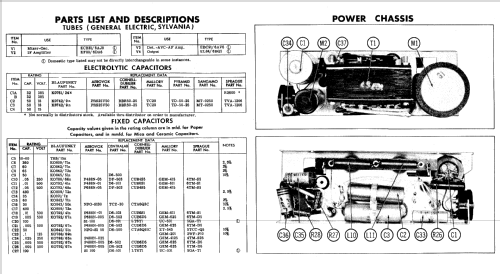

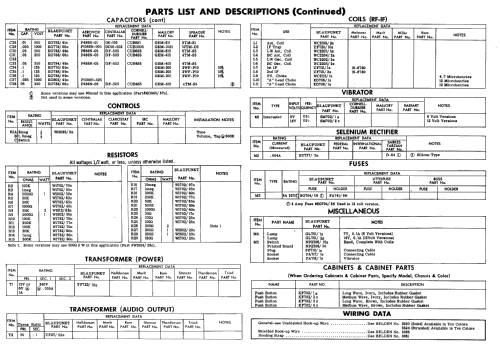

• Photofact Folder, Howard W. SAMS (Date 2-59, Set 432, Folder 5)

• Author
• Model page created by Richard Winter. See "Data change" for further contributors.
