• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1957 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73779

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EF89 EBC41 EL84

• Number of Transistors

• Semiconductors
• E250C85

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Export model

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

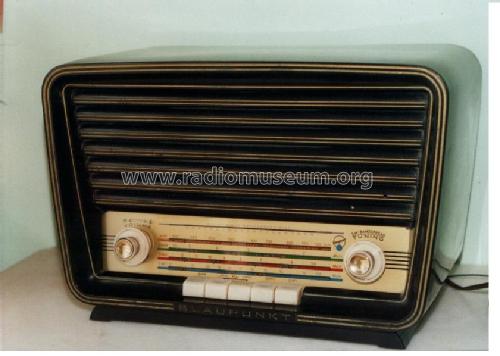

• Model: Bristol I de Luxe 2465 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 370 x 245 x 200 mm / 14.6 x 9.6 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
