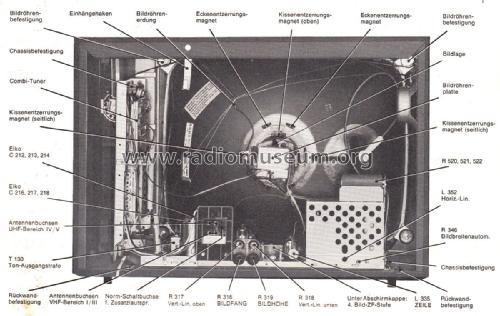

Caracas 7.677.270
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1967/1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 116588
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- 11
- Semiconductors
- AF239 AF139 IW8377 AF126 AF137 or. AF193 AF200 AF125 AF121 BFY39 DW6577 BF110 BY250 OA161 OA161 SFD108 M80C4 M80C4 OA90 OA161 AA119 AA119
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Caracas 7.677.270 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 715 x 500 x 200 mm / 28.1 x 19.7 x 7.9 inch
- Notes
- VHF/UHF-Einblock-Drucktasten-Tuner.
- Net weight (2.2 lb = 1 kg)
- 28 kg / 61 lb 10.8 oz (61.674 lb)
- Source of data
- Handbuch VDRG 1967/1968
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
