• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19664

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

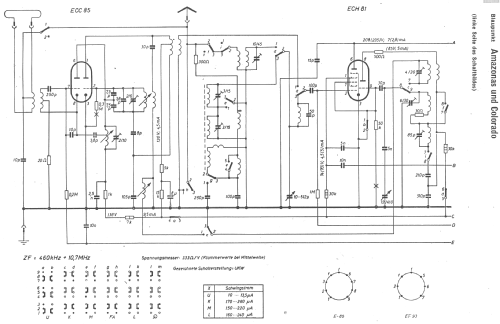

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF93 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 6 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Colorado - Blaupunkt Ideal, Berlin,

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 600 x 760 x 370 mm / 23.6 x 29.9 x 14.6 inch

• Notes
• Rundfunk-Chassis = Nizza;
  Phono-Chassis = PE3425.

• Net weight (2.2 lb = 1 kg)
• 24 kg / 52 lb 13.8 oz (52.863 lb)

• Price in first year of sale
• 499.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Literature/Schematics (1)
• -- Original-techn. papers.
