CTV2006 7.668.150 CRT A55-16X
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1968/1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 116648
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

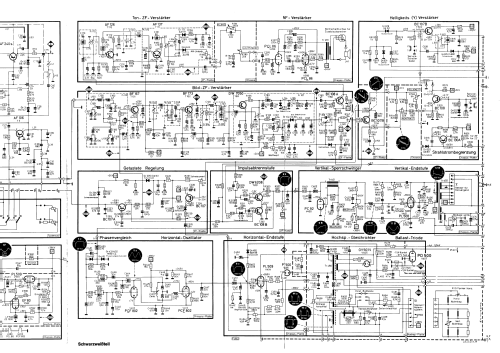

Bild aus dem Service Manual SM

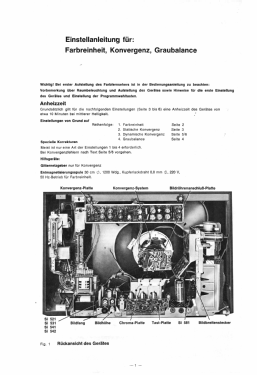

Bild aus dem SM2
Q: Blaupunkt Service
Q: Blaupunkt, Service-Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- PC92 PCF802 PCL86 PCL200 PCL200 PCL200 PL508 PL509 EF80 ZZ1000 PL509 PY500 PD500 GY501 A55-16X
- Number of Transistors
- 41
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: CTV2006 7.668.150 [CRT A55-16X] - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 690 x 485 x 280 mm / 27.2 x 19.1 x 11 inch
- Notes
-
VHF/UHF-Allbereich-Drucktasten-Tuner.
Siehe auch Blaupunkt CTV2006 7.668.150 des Vorjahrgangs 1967/68 mit Bildröhre RE22JB22.
- Net weight (2.2 lb = 1 kg)
- 42 kg / 92 lb 8.2 oz (92.511 lb)
- Price in first year of sale
- 2,058.00 DM
- Source of data
- Handbuch VDRG 1968/1969
- Mentioned in
- Handbuch Rundfunk Fernsehen Phono (RFP) 1968/69, S.22
