CTV2281 Ch= 7.668.210

• Country
• Germany

• Manufacturer / Brand
• Blaupunkt (Ideal), Berlin, später Hildesheim

• Year
• 1969/1970

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 116655

• • alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
  • Brand: Rotstern

• Picture

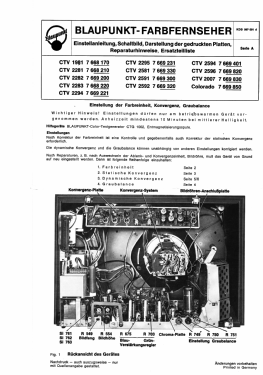

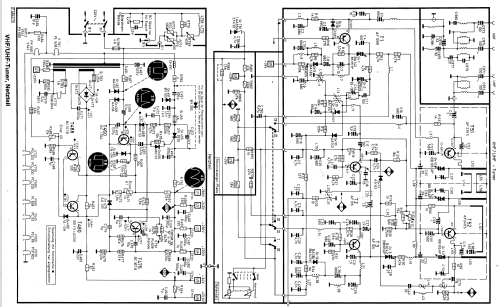

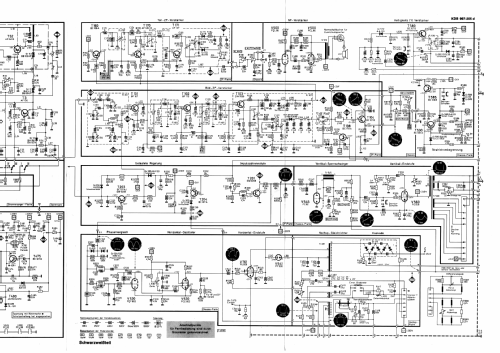

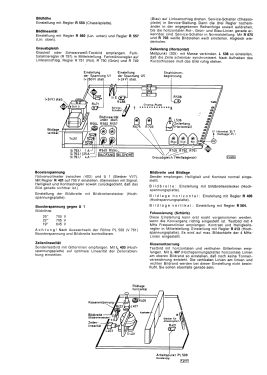

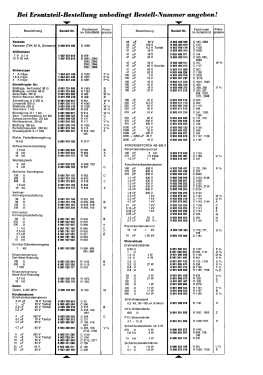

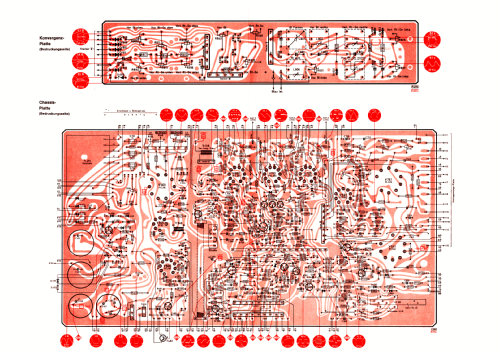

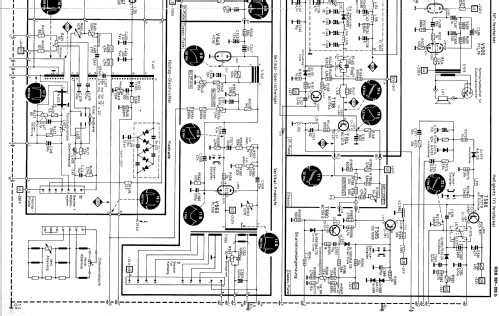

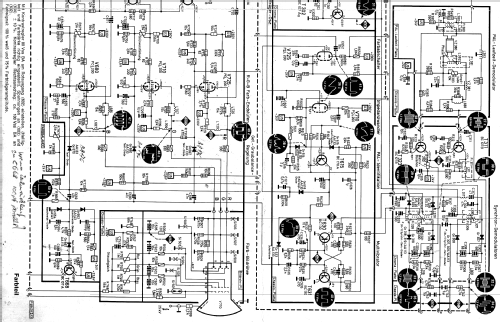

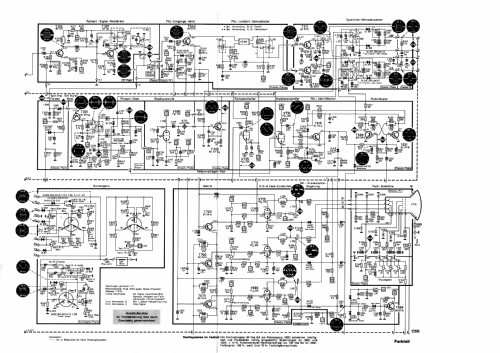

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• PCL86 PCL200 PCL200 PCL200 PC92 PL508 PCF802 PL509 PY500A A56-120X

• Number of Transistors
• 37

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: CTV2281 Ch= 7.668.210 - Blaupunkt Ideal, Berlin,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 475 x 505 mm / 26.8 x 18.7 x 19.9 inch

• Notes

• VHF/UHF- Allbereichtuner mit Diodenabstimmung und Preomat

  Siehe auch Siemens Bildmeister FC18 Electronic.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Price in first year of sale
• 2,058.00 DM

• Source of data
• Handbuch VDRG 1969/1970

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
