CTV660 7.660.360
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1970/1971
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 116731
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern
Q: Blaupunkt, Produkt-Katalog 1970
Blaupunkt Sales Brochure 1970

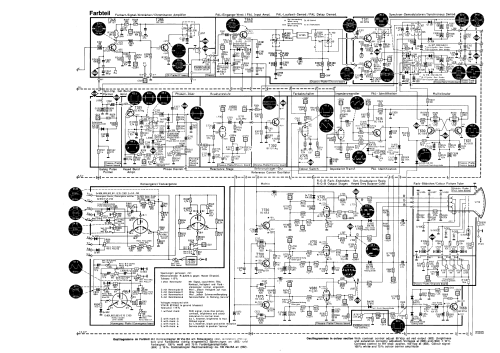

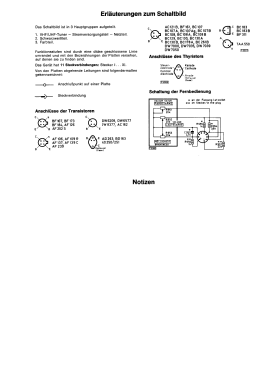

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Valves / Tubes
- A66-120X
- Number of Transistors
- 38
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: CTV660 7.660.360 - Blaupunkt Ideal, Berlin,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 745 x 525 x 560 mm / 29.3 x 20.7 x 22 inch
- Notes
- 2 ICs. VHF/UHF-Allbereich-Drucktasten-Tuner.
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- Price in first year of sale
- 2,448.00 DM
- Source of data
- Handbuch VDRG 1970/1971
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
